Range

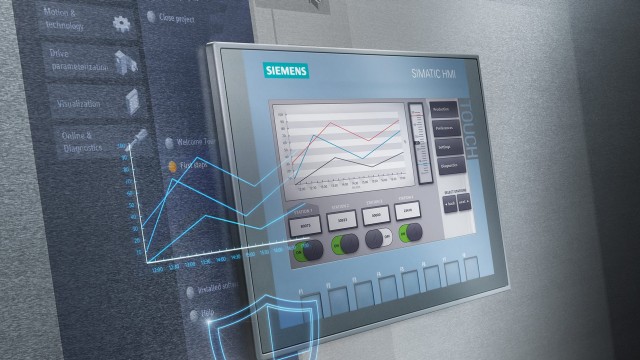

Basic HMI Panels
With their sophisticated HMI basic functions, SIMATIC HMI Basic Panels 2nd generation are the ideal entry-level series for simple HMI applications. The device series offers panels with 4″, 7″, 9″ and 12″ displays, and combined key or touch operation The innovative widescreen displays are high resolution with 64,000 colors. They can be installed in portrait mode and are especially energy-efficient due to their 100% dimmable brightness. The innovative user interface opens up a wide range of operations with improved usability through new controls and graphics. The USB interface allows you to connect a keyboard, mouse and barcode scanner and supports easy archiving of data on a USB stick.
View details →Comfort (Advanced) HMI
SIMATIC HMI Comfort Panels are designed for implementation of high-performance visualization applications on the machine-level. High performance, functionality and numerous integrated interfaces offer the greatest convenience in high-end applications. SIMATIC HMI Comfort Panels Standard devices form the technological basis for specialized variants like IP65 protected devices, panels with a stainless steel front, or for outdoor applications as well as coated versions.
View details →

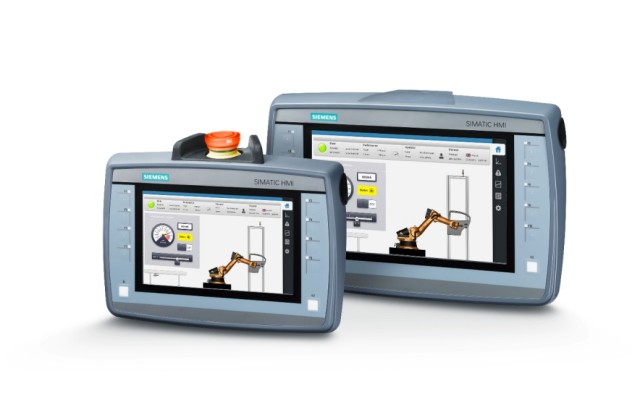

HMI Mobile Panels
When it comes to high-end mobile applications, opt for mobile panels. These are also for fail-safe machines and widely distributed plants. SIMATIC HMI Mobile Panels 2nd generation transfer the functionality and performance of SIMATIC HMI Comfort Panels to mobile control units. Users benefit from more flexibility and convenience.
View details →

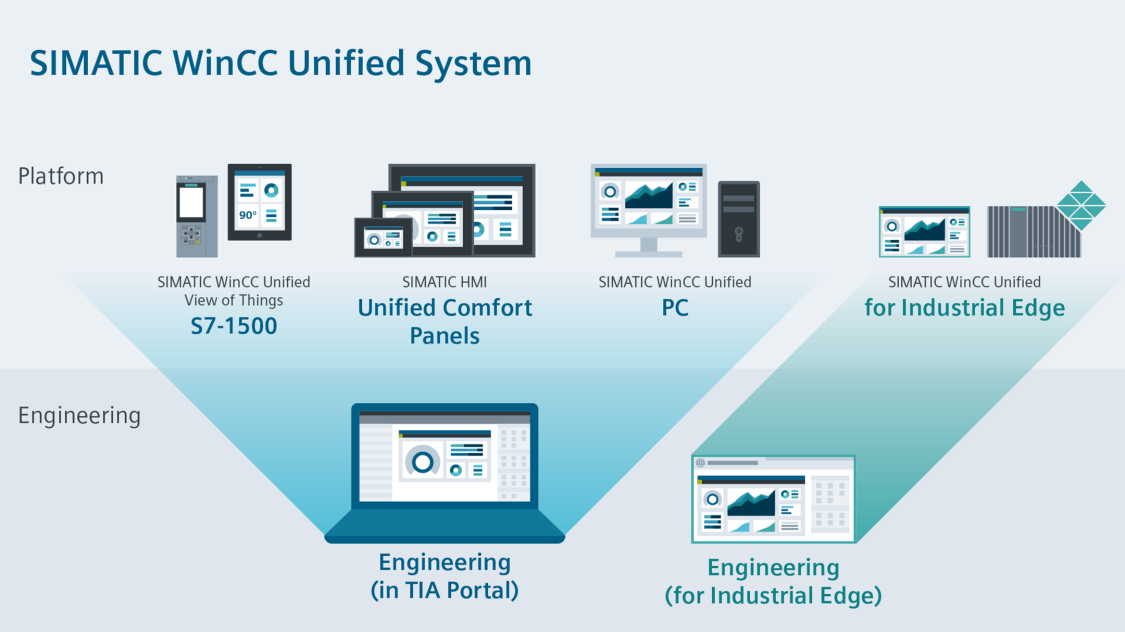

WinCC Unified HMI
SIMATIC WinCC Unified is a completely new visualization system that enables you to successfully master the challenges of digitization in machine and plant engineering. The latest web and edge technologies combined with open interfaces enable you to implement your ideas flexibly and according to application-specific requirements.
View details →

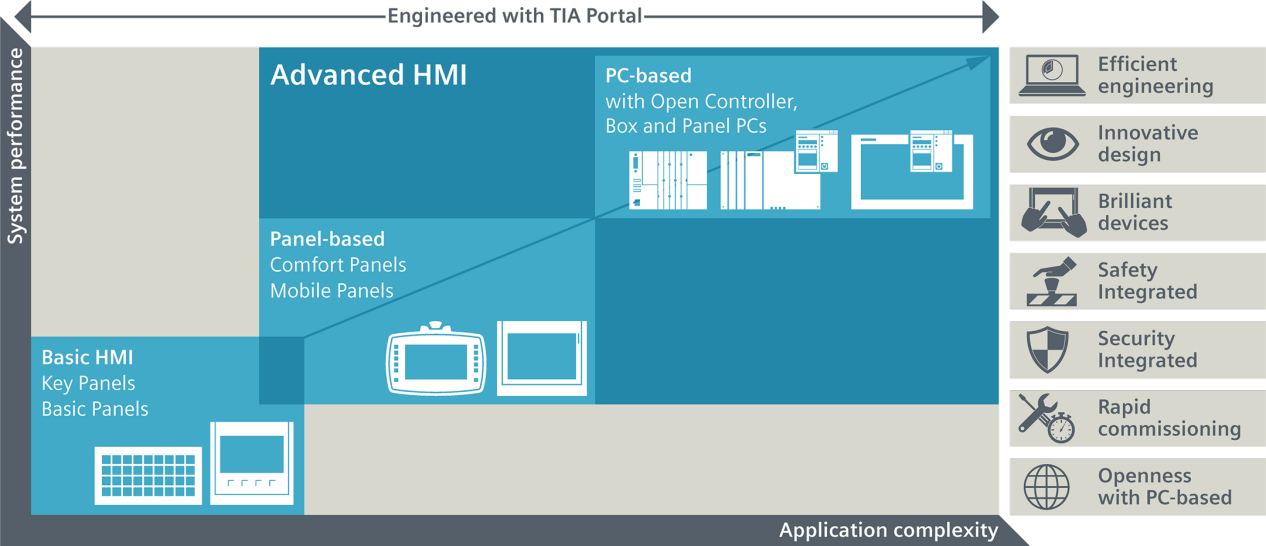

The perfect combination of Operator Devices and Engineering Software

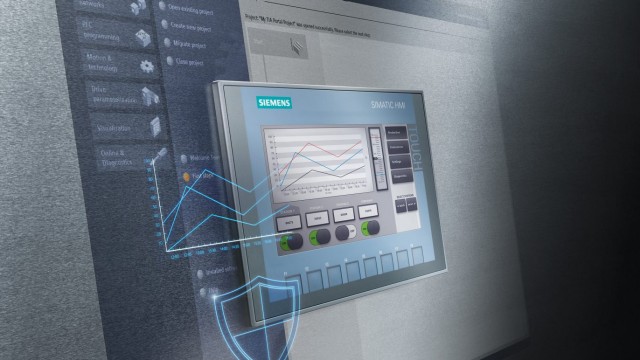

Basic HMI - Panel based

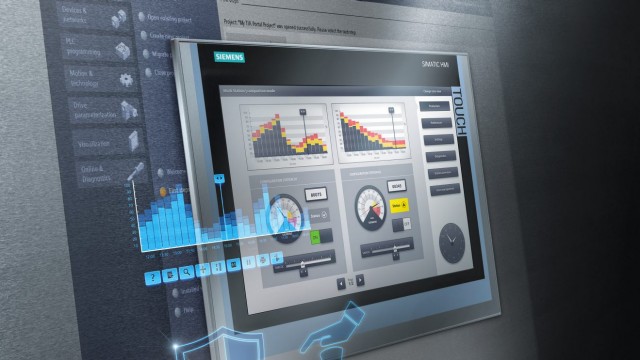

Comfort HMI - Panel based
Mobile HMI
SIMATIC HMI Operator devices
SIMATIC HMI Panels and Panel PCs have proven their value in many different applications in all industrial sectors over many years. The range of the systems in use is just as wide as that of the applications and technologies in the respective plants.
The SIMATIC HMI product range allows solutions tailored to your specific requirements. Scalable from basic tasks to high performance configurations. The Configuration Software WinCC TIA Portal always provides exactly the functionality you need for your application, as it is always corresponding to the device you’re choosing.
Added values included
Machine level visualization is much more than just a broad offer of panel hardware with different sizes and operating elements. Totally Integrated Automation and the idea of complete digitalization of the whole enterprise is demonstrated most obvious at the interface of man and machine or operator and process. SIMATIC HMI offers a solution portfolio that includes all the benefits of TIA, providing productivity, efficiency and usability.
Efficient Engineering with SIMATIC HMI
Create your visualization faster and more easily than ever before!
Take advantage of the unique library concept, smart editors, simulation and virtual commissioning!
Innovative design & operation with SIMATIC HMI
Innovative operator control objects with dynamic or animated elements right out of the libraries of the engineering system, a Style Editor for creating screens according to your corporate design and hardware that supports even gesture control or multitouch as a means of controlling your machinery.
Make visualizing the calling card for your machine!
Brilliant HMI devices from SIMATIC HMI
Machine-level visualization with SIMATIC HMI – Brilliant HMI devices: Use the right HMI device for your application!
Protection – with certainty
Protect your investment, your know-how and ensure reliable operation!
Machine safety, information security and investment protection: Be sure to be on the right side with SIMATIC HMI
Rapid commissioning
Reliable error detection and error analysis already during engineering means rapid commissioning and minimizing downtimes even in the case of device changes.
Waste no time with testing and servicing!

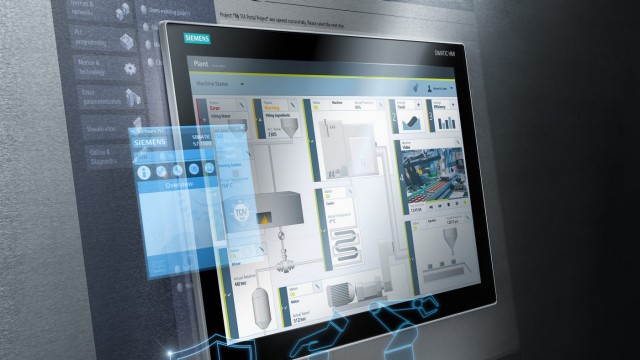

Openness with PC-based Automation
Machine-level visualization with SIMATIC HMI – Openess with PC-based: You and your applications remain flexible and independent!
