Cost-effective in DC
DC converters – SINAMICS DCM
The scalable DC drive: compact, flexible, ready for connection
SINAMICS DC Master is the scalable DC drive system for simple and demanding applications, flexibly expandable from standard to the high performance solution. Many years of experience concentrated know-how and consistent development guarantee highly reliable state-of-the-art solutions. With the two different device versions, the SINAMICS DCM can be optimally integrated into any plant.
SINAMICS DCM – Safe, compact, reliable
Product range
SINAMICS DCM DC Converters – The universally applicable built-in unit
The scalable drive system for basic and demanding applications
The power converter series SINAMICS DC MASTER convinces as a scalable drive system for both basic and demanding applications. For standard control, the DC power converter is equipped with a standard control unit for power converters (Standard CUD). For applications with a need for higher computing performance and a larger number of interfaces, the extension with an additional Control Unit for power converters (Adwanced CUD) is ideal.
The DC power converter of the SINAMICS DC MASTER serie combnes control and regulation and power units in one device and is characterized above all by its compact, space-saving design.
Technical data overview
Power range
Rated direct current
Rated supply voltage
6.3 kW up to 30 MW
15 up to 3000 A
3 AC 400 up to 950 V

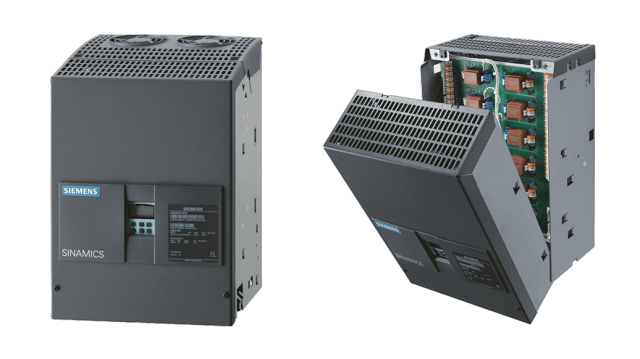

SINAMICS DCM Control Module – For the modernization of existing plants
The scalable drive system for retrofit applications
The SINAMICS DC MASTER Control Module offers the right solution for conversions and modernizations of excisting DC drives. In contrast to the SINAMICS DC MASTER, which consists of control, regulation and power section, the module is primarily used if the power section of the existing systems is retained in the course of modernization. In direct current technology, there are many systems, which can no longer be connected to modern automation system, when they are in their current design. When retrofitting or upgrading these systems, the motor, mechanics and power section are left in the system and the control section is replaced by the control module. This provides an extremely cost-effective modern DC drive with the full range of functions of the proven full digitized devices in the SINAMICS DC MASTER series.
Connection options for the following rated supply voltages of the armature circuit Power section
Rated supply voltages Electronics supply
Rated supply voltages field
3 AC 50 / 125 / 250 / 575 / 1000 V
DC 24 V (DC 18 up to 30 V); In = 5 A
2 AC 480 V (+10 / -20 %)
